버퍼 오브젝트 (Buffer Objects) (1)

by 임 낭 만 2023. 5. 29.

Buffer Objects

Buffer Objects

  • Until now, a large number of function calls were needed for drawing graphics primitives (such as polygons, lines, or points)
//...
glColor3f(1.0f, 1.0f, 0.0f);
glBegin(GL_POLYGON);
glTexCoord2f(0.25f, 0.50f);	glVertex3f(-1.0f, 1.0f, 1.0f);
glTexCoord2f(0.25f, 0.25f);	glVertex3f(-1.0f, -1.0f, 1.0f);
glTexCoord2f(0.50f, 0.25f);	glVertex3f(-1.0f, -1.0f, 1.0f);
glTexCoord2f(0.50f, 0.50f);	glVertex3f(1.0f, 1.0f, 1.0f);
glEnd();
//...
  • Each function call is transferring only as small amount of data to the OpenGL pipeline
  • This way of graphics leads to slow processing, because the graphics hardware operations can not be executed in parallel on a large number of data, instead the hardware is constantly waiting for data
  • Therefore, since OpenGL >= 3.1 the corresponding functions (glBegin, glVertex, etc.) are only supported in the "Compatibility Profile"
  • Instead, vertex data is now transferred in larger blocks, which are stored and managed on the graphics card using Buffer Objects
더보기

지금까지는 그래픽 프리미티브(다각형, 선 또는 점)를 그리기 위해 많은 수의 함수 호출이 필요했음.

각 함수 호출은 OpenGL 파이프라인으로 소량의 데이터만 전송함.

이러한 그래픽 방식으로는 처리 속도가 저하됨.이는 다수의 데이터에 대해 그래픽 하드웨어 처리를 병렬로 수행할 수 없고 하드웨어가 항상 데이터를 대기하고 있기 때문임.

따라서 OpenGL >= 3.1 이후 대응하는 함수(glBegin, glVertex 등)는 "호환성 프로파일"에서만 지원됨.

대신 정점 데이터는 더 큰 블록으로 전송되고 버퍼 객체를 사용하여 그래픽 카드에 저장 및 관리.

Vertex Buffer Objects (VBO)

Creating VBOs in OpenGL

  • Creating VBOs is usually done before the actual rendering, e.g., in the function init( )
  • The procedure is analogous to creating textures and involves three steps:
    • Step 1: The function glGenBuffers(1, &bufID) is generating a unique identifier
    • Step 2: With glBindBuffer(GL_ARRAY_BUFFER, bufID) a new VBO is created. Possible targets are GL_ARRAY_BUFFER or GL_ELEMENT_ARRAY_BUFFER
    • Step 3: The function glBufferData(GL_ARRAY_BUFFER, size, inData, GL_STATIC_DRAW) transfers the vertex data
더보기

VBO 생성은 일반적으로 init() 함수와 같이 실제 렌더링 전에 수행됨.

이 절차는 텍스처를 만드는 것과 유사하며 다음 세 단계를 포함함.

1단계 : 함수 glGenBuffers(1, &bufID)가 고유 식별자를 생성함.

2단계 : glBindBuffer(GL_ARRAY_BUFFER, bufID) 를 사용하여 새로운 VBO 가 생성됨. GL_ARRAY_BUFFER 또는 GL_ELEMENT_ARRAY_BUFFER

3단계 : 함수 glBufferData(GL_ARRAY_BUFFER, size, inData, GL_STATIC_DRAW)는 정점 데이터를 전송함.

Activating VBOs in OpenGL

  • In order to use a VBO for rendering, it must be activated. This also involves three steps:
    • Step 1: Binding the buffer with glBindBuffer(GL_ARRAY_BUFFER, bufID)
    • Step 2: Defining a stride and a start address for the memory access
    • Step 3: Activating the buffer for a certain purpose
      glEnableClientState(GL_VERTEX_ARRAY).
      Possible parameters are: GL_VERTEX_ARRAY, GL_COLOR_ARRAY, GL_SECONDARY_COLOR_ARRAY, GL_INDEX_ARRAY, GL_NORMAL_ARRAY, GL_TEXTURE_COORD_ARRAY
더보기

렌더링에 VBO를 사용하려면 VBO를 활성화해야 함

1단계 : glBindBuffer(GL_ARRAY_BUFFER, bufID)를 이용하여 버퍼 바인딩

2단계 : 메모리 액세스에 대한 시작 주소 정의

3단계 : 특정 목적을 위해 버퍼 활성화

Rendering using VBOs in OpenGL

  • After activating a VBO the rendering of all containing data is initiated with a single function call:
    Possible parameters are the same as those of glBegin(…), such as GL_POLYGON, GL_LINE_LOOP, GL_LINES, GL_POINTS, etc.
glDrawArrays(GL_POLYGONS, first, count);
  • If the VBO is no longer used, the memory can be released by glDeleteBuffers(1, &bufID)

Example: Rendering a Sphere with a Large Number of Points

// This code example is created for educational purpose
// by Thorsten Thormaehlen (contact: www.thormae.de).
// It is distributed without any warranty.
#include <GL/glew.h>
#include <GL/freeglut.h> // we use glut here as window manager
#define _USE_MATH_DEFINES
#include <math.h>
#include <iostream>
#include <string>
#include <sstream>
#include <vector>
using namespace std;
class Renderer {
public:
    float t;
    int mode;
    unsigned ayimutSegs, polarSegs;
private:
    GLuint bufID;
    int bufSize;
public:
    // constructor
    Renderer() : t(0.0), mode(0), bufID(0), bufSize(0), ayimutSegs(1000), polarSegs(1000) {}
    //destructor
    ~Renderer() {
        if (bufID != 0) glDeleteBuffers(1, &bufID);
    }
public:
    void init() {
        glEnable(GL_DEPTH_TEST);

        // generating VBO input data
        std::vector<float> dataIn;
        float ayimutStep = 2.0f * float(M_PI) / float(ayimutSegs);
        float polarStep = float(M_PI) / float(polarSegs);
        float r = 1.0;
        bufSize = 0;
        for (unsigned m = 0; m < ayimutSegs; m++) {
            for (unsigned n = 0; n < polarSegs; n++) {
                float phi = ayimutStep * m;
                float theta = polarStep * n;
                // compute xyz from spherical coordinates
                float x = r * sin(theta) * cos(phi);
                float y = r * sin(theta) * sin(phi);
                float z = r * cos(theta);
                dataIn.push_back(x);
                dataIn.push_back(y);
                dataIn.push_back(z);
                bufSize++;
            }
        }
        // generating VBO
        glGenBuffers(1, &bufID);
        glBindBuffer(GL_ARRAY_BUFFER, bufID);
        glBufferData(GL_ARRAY_BUFFER, dataIn.size() * sizeof(float), &dataIn[0], GL_STATIC_DRAW);
    }
    void resize(int w, int h) {
        glViewport(0, 0, w, h);
        glMatrixMode(GL_PROJECTION);
        glLoadIdentity();
        gluPerspective(30.0, (float)w / (float)h, 0.1, 50.0);
    }
    void display() {
        glClearColor(0.0f, 0.0f, 0.0f, 0.0f);
        glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);
        glMatrixMode(GL_MODELVIEW);
        glLoadIdentity();
        // set camera
        gluLookAt(3.5, -1.0, 3.5, 0.0, 0.0, 0.0, 0.0, 0.0, 1.0);
        // draw scene
        glRotatef(t, 0.0f, 0.0f, 1.0f);

        // activating VBO
        glBindBuffer(GL_ARRAY_BUFFER, bufID);
        int stride = 0;
        glVertexPointer(3, GL_FLOAT, stride, NULL);
        glEnableClientState(GL_VERTEX_ARRAY);
        if (mode == 0) {
            glColor3f(1.0f, 1.0f, 1.0f);
        }
        else {
            glColorPointer(3, GL_FLOAT, stride, NULL);
            glEnableClientState(GL_COLOR_ARRAY);
        }

        //render VBO
        glDrawArrays(GL_POINTS, 0, bufSize);
        glDisableClientState(GL_VERTEX_ARRAY);
        glDisableClientState(GL_COLOR_ARRAY);
    }
};
//this is a static pointer to a Renderer used in the glut callback functions
static Renderer* renderer;
//glut static callbacks start
static void glutResize(int w, int h)
{
    renderer->resize(w, h);
}
static void glutDisplay()
{
    renderer->display();
    glutSwapBuffers();
    glutReportErrors();
}
static void timer(int v)
{
    float offset = 0.25f;
    renderer->t += offset;
    glutDisplay();
    glutTimerFunc(unsigned(20), timer, ++v);
}
static void glutKeyboard(unsigned char key, int x, int y) {
    bool redraw = false;
    std::string modeStr;
    switch (key) {
    case '1':
        if (renderer->mode == 1) renderer->mode = 0;
        else renderer->mode = 1;
        redraw = true;
        break;
    case '2':
        if (renderer->ayimutSegs < 1000) {
            renderer->ayimutSegs *= 10;
            renderer->polarSegs *= 10;
        }
        else {
            renderer->ayimutSegs = 10;
            renderer->polarSegs = 10;
        }
        renderer->init();
        redraw = true;
        break;
    }
    if (redraw) {
        glutDisplay();
    }
}
int main(int argc, char** argv)
{
    glutInit(&argc, argv);
    glutInitDisplayMode(GLUT_DEPTH | GLUT_DOUBLE | GLUT_RGBA);
    glutInitWindowPosition(100, 100);
    glutInitWindowSize(320, 320);
    glutCreateWindow("Press 1 to change color, 2 to increase vertex count");
    GLenum err = glewInit();
    if (GLEW_OK != err) {
        fprintf(stderr, "Glew error: %s\n", glewGetErrorString(err));
    }
    glutDisplayFunc(glutDisplay);
    //glutIdleFunc(glutDisplay);
    glutReshapeFunc(glutResize);
    glutKeyboardFunc(glutKeyboard);

    renderer = new Renderer;
    renderer->init();
    glutTimerFunc(unsigned(20), timer, 0);
    glutMainLoop();
}

Using Vertex Indices

Using Vertex Indices

  • When drawing polygonal surfaces, it often happens that vertices are used several times for adjacent polygons
  • If the vertices shall be stored only once, polygons can be defined using the indices of the vertices

  • To use vertex indices with VBOs, usually two VBOs are defined: one for vertex data and another for index data
  • A VBO with index data is generated and activated with glBindBuffer(GL_ELEMENT_ARRAY_BUFFER, bufID)
  • The rendering is then carried out with the function
glDrawElements(GL_POLYGON, count, GL_UNSIGNED_INT);

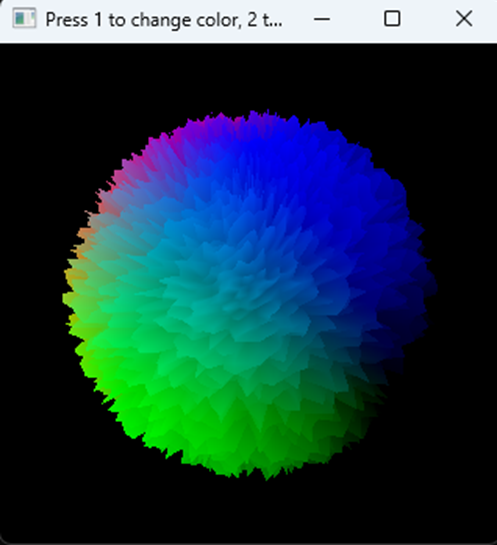

Example: Rendering a Spiky Sphere with Vertex Indices

// This code example is created for educational purpose
// by Thorsten Thormaehlen (contact: www.thormae.de).
// It is distributed without any warranty.
#include <GL/glew.h>
#include <GL/freeglut.h> // we use glut here as window manager
#define _USE_MATH_DEFINES
#include <math.h>
#include <iostream>
#include <string>
#include <sstream>
#include <vector>
using namespace std;
class Renderer {
public:
    float t;
    int mode;
    unsigned ayimutSegs;
    unsigned polarSegs;
private:
    GLuint vertBufID, indicesBufID;
    int vertSize;
public:
    // constructor
    Renderer() : t(0.0), mode(1), ayimutSegs(10), polarSegs(10),
        vertBufID(0), indicesBufID(0), vertSize(0) {}
    //destructor
    ~Renderer() {
        if (vertBufID != 0) glDeleteBuffers(1, &vertBufID);
        if (indicesBufID != 0) glDeleteBuffers(1, &indicesBufID);
    }
public:
    void init() {
        glEnable(GL_DEPTH_TEST);
        recreateVBOs();
    }
    void recreateVBOs() {
        if (vertBufID != 0) glDeleteBuffers(1, &vertBufID);
        if (indicesBufID != 0) glDeleteBuffers(1, &indicesBufID);

        // generating VBO input data
        std::vector<float> vertexData;
        std::vector<int> indicesData;
        int totalSegs = ayimutSegs * polarSegs;
        float ayimutStep = 2.0f * M_PI / float(ayimutSegs);
        float polarStep = M_PI / float(polarSegs);
        float r = 1.0;
        vertSize = 0;
        for (unsigned m = 0; m < ayimutSegs; m++) {
            for (unsigned n = 0; n < polarSegs; n++) {
                float phi = ayimutStep * m;
                float theta = polarStep * n;
                // random radius
                int rval = rand();
                r = 1.0f - 0.3f * (fabs(float(rval)) / float(RAND_MAX));

                // create xyz from spherical coordinates
                float x = r * sin(theta) * cos(phi);
                float y = r * sin(theta) * sin(phi);
                float z = r * cos(theta);
                vertexData.push_back(x);
                vertexData.push_back(y);
                vertexData.push_back(z);

                // create vertex indices
                indicesData.push_back(vertSize % totalSegs);
                indicesData.push_back((vertSize + ayimutSegs) % totalSegs);
                indicesData.push_back((vertSize + ayimutSegs + 1) % totalSegs);
                indicesData.push_back((vertSize + 1) % totalSegs);
                vertSize++;
            }
        }
        // generating vertex VBO
        glGenBuffers(1, &vertBufID);
        glBindBuffer(GL_ARRAY_BUFFER, vertBufID);
        glBufferData(GL_ARRAY_BUFFER, vertexData.size() * sizeof(float), &vertexData[0], GL_STATIC_DRAW);
        // generating index VBO
        glGenBuffers(1, &indicesBufID);
        glBindBuffer(GL_ELEMENT_ARRAY_BUFFER, indicesBufID);
        glBufferData(GL_ELEMENT_ARRAY_BUFFER, indicesData.size() * sizeof(int), &indicesData[0], GL_STATIC_DRAW);
    }
    void resize(int w, int h) {
        glViewport(0, 0, w, h);
        glMatrixMode(GL_PROJECTION);
        glLoadIdentity();
        gluPerspective(30.0, (float)w / (float)h, 0.1, 50.0);
    }
    void display() {
        glClearColor(0.0f, 0.0f, 0.0f, 0.0f);
        glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);
        glMatrixMode(GL_MODELVIEW);
        glLoadIdentity();
        // set camera
        gluLookAt(3.5, -1.0, 3.5, 0.0, 0.0, 0.0, 0.0, 0.0, 1.0);
        // draw scene
        glRotatef(t, 0.0f, 0.0f, 1.0f);

        // activating VBO
        glBindBuffer(GL_ARRAY_BUFFER, vertBufID);
        int stride = 0;
        glVertexPointer(3, GL_FLOAT, stride, NULL);
        glEnableClientState(GL_VERTEX_ARRAY);
        if (mode == 0) {
            glColor3f(1.0f, 1.0f, 1.0f);
        }
        else {
            glColorPointer(3, GL_FLOAT, stride, NULL);
            glEnableClientState(GL_COLOR_ARRAY);
        }
        glBindBuffer(GL_ELEMENT_ARRAY_BUFFER, indicesBufID);
        glDrawElements(GL_QUADS, vertSize * 4, GL_UNSIGNED_INT, NULL);
        glDisableClientState(GL_VERTEX_ARRAY);
        glDisableClientState(GL_COLOR_ARRAY);
    }
};
//this is a static pointer to a Renderer used in the glut callback functions
static Renderer* renderer;
//glut static callbacks start
static void glutResize(int w, int h)
{
    renderer->resize(w, h);
}
static void glutDisplay()
{
    renderer->display();
    glutSwapBuffers();
    glutReportErrors();
}
static void timer(int v)
{
    float offset = 0.25f;
    renderer->t += offset;
    glutDisplay();
    glutTimerFunc(unsigned(20), timer, ++v);
}
static void glutKeyboard(unsigned char key, int x, int y) {
    bool redraw = false;
    std::string modeStr;
    switch (key) {
    case '1':
        if (renderer->mode == 1) renderer->mode = 0;
        else renderer->mode = 1;
        redraw = true;
        break;
    case '2':
        if (renderer->ayimutSegs < 1000) {
            renderer->ayimutSegs *= 10;
            renderer->polarSegs *= 10;
        }
        else {
            renderer->ayimutSegs = 10;
            renderer->polarSegs = 10;
        }
        renderer->recreateVBOs();
        redraw = true;
        break;
    }
    if (redraw) {
        glutDisplay();
    }
}
int main(int argc, char** argv)
{
    glutInit(&argc, argv);
    glutInitDisplayMode(GLUT_DEPTH | GLUT_DOUBLE | GLUT_RGBA);
    glutInitWindowPosition(100, 100);
    glutInitWindowSize(320, 320);
    glutCreateWindow("Press 1 to change color, 2 to increase vertex count");
    GLenum err = glewInit();
    if (GLEW_OK != err) {
        fprintf(stderr, "Glew error: %s\n", glewGetErrorString(err));
    }
    glutDisplayFunc(glutDisplay);
    //glutIdleFunc(glutDisplay);
    glutReshapeFunc(glutResize);
    glutKeyboardFunc(glutKeyboard);

    renderer = new Renderer;
    renderer->init();

    glutTimerFunc(unsigned(20), timer, 0);
    glutMainLoop();
}

Dynamic Update of VBOs

Dynamic Uodate of VBOs

  • If VBOs should be used in a dynamic scene, it is best for fast display when the vertices are static in the VBOs and the motion is realized only by changing the modelview matrix
    • In this case, no new vertex data must be transferred to the GPU
    • This is possible, for example, for the animation of a car
  • However, it often happens that the vertex data must be changed
    • For example, to realize a muscle deformation during the animation of a runner
    • In this case, new data must be transferred to the GPU
  • Complete :
    • An option for a dynamic update is to transfer the complete data again with (아래 코드)
    • If this happens often, instead of GL_STATIC_DRAW the parameters GL_DYNAMIC_DRWA should be used
    • When the content of the VBOs changes with each new frame, the parameter GL_STREAM_DRAW can be employed
glBufferData(GL_ARRAY_BUFFER, size, data, GL_STATIC_DRAW);
  • Partial :
    • If only a few data within the VBO is affected, it is probably worth to update the new VBO only partially
    • This is done by:
glBufferSubData(GL_ARRAY_BUFFER, offset, size, data);

Example: Dynamic Update of the Spiky Sphere

// This code example is created for educational purpose
// by Thorsten Thormaehlen (contact: www.thormae.de).
// It is distributed without any warranty.
#include <GL/glew.h>
#include <GL/freeglut.h> // we use glut here as window manager
#define _USE_MATH_DEFINES
#include <math.h>
#include <iostream>
#include <string>
#include <sstream>
#include <vector>
using namespace std;
class Renderer {
public:
    float t;
    int mode;
    unsigned ayimutSegs;
    unsigned polarSegs;
    int frameCount;
    int currentTime;
    int previousTime;
private:
    GLuint vertBufID, indicesBufID;
    int vertSize;
public:
    // constructor
    Renderer() : t(0.0), mode(1), ayimutSegs(8), polarSegs(8),
        vertBufID(0), indicesBufID(0), vertSize(0), frameCount(0), previousTime(0) {}
    //destructor
    ~Renderer() {
        if (vertBufID != 0) glDeleteBuffers(1, &vertBufID);
        if (indicesBufID != 0) glDeleteBuffers(1, &indicesBufID);
    }
public:
    void init() {
        glEnable(GL_DEPTH_TEST);
        recreateVBOs();
    }
    void recreateVBOs() {
        if (vertBufID != 0) glDeleteBuffers(1, &vertBufID);
        if (indicesBufID != 0) glDeleteBuffers(1, &indicesBufID);

        // generating VBO input data
        std::vector<float> vertexData;
        std::vector<int> indicesData;
        int totalSegs = ayimutSegs * polarSegs;
        float ayimutStep = 2.0f * float(M_PI) / float(ayimutSegs);
        float polarStep = float(M_PI) / float(polarSegs);
        float r = 1.0;
        vertSize = 0;
        for (unsigned m = 0; m < ayimutSegs; m++) {
            for (unsigned n = 0; n < polarSegs; n++) {
                float phi = ayimutStep * m;
                float theta = polarStep * n;
                // random radius
                int rval = rand();
                r = 1.0f - 0.3f * (fabs(float(rval)) / float(RAND_MAX));

                // create xyz from spherical coordinates
                float x = r * sin(theta) * cos(phi);
                float y = r * sin(theta) * sin(phi);
                float z = r * cos(theta);

                vertexData.push_back(x);
                vertexData.push_back(y);
                vertexData.push_back(z);

                // create vertex indices
                indicesData.push_back(vertSize % totalSegs);
                indicesData.push_back((vertSize + ayimutSegs) % totalSegs);
                indicesData.push_back((vertSize + ayimutSegs + 1) % totalSegs);
                indicesData.push_back((vertSize + 1) % totalSegs);
                vertSize++;
            }
        }
        // generating vertex VBO
        glGenBuffers(1, &vertBufID);
        glBindBuffer(GL_ARRAY_BUFFER, vertBufID);
        glBufferData(GL_ARRAY_BUFFER, vertexData.size() * sizeof(float), &vertexData[0], GL_STATIC_DRAW);
        // generating index VBO
        glGenBuffers(1, &indicesBufID);
        glBindBuffer(GL_ELEMENT_ARRAY_BUFFER, indicesBufID);
        glBufferData(GL_ELEMENT_ARRAY_BUFFER, indicesData.size() * sizeof(int), &indicesData[0], GL_STATIC_DRAW);
    }
    void updateRandomVBOVertex() {
        float ayimutStep = 2.0f * float(M_PI) / float(ayimutSegs);
        float polarStep = float(M_PI) / float(polarSegs);
        float r = 1.0;
        // randomly select point
        int mval = rand();
        int m = int((ayimutSegs - 1) * (fabs(float(mval)) / float(RAND_MAX)));
        int nval = rand();
        int n = int((polarSegs - 1) * (fabs(float(nval)) / float(RAND_MAX)));

        float phi = ayimutStep * m;
        float theta = polarStep * n;

        // random radius
        int rval = rand();
        r = 1.0f - 0.3f * (fabs(float(rval)) / float(RAND_MAX));
        // create xyz from spherical coordinates
        float x = r * sin(theta) * cos(phi);
        float y = r * sin(theta) * sin(phi);
        float z = r * cos(theta);

        int vertPos = (m * polarSegs + n) * 3;

        float newVertexData[3];
        newVertexData[0] = x;
        newVertexData[1] = y;
        newVertexData[2] = z;
        // update vertex in VBO
        glBindBuffer(GL_ARRAY_BUFFER, vertBufID);
        glBufferSubData(GL_ARRAY_BUFFER, vertPos * sizeof(float), 3 * sizeof(float), newVertexData);
    }
    void resize(int w, int h) {
        glViewport(0, 0, w, h);
        glMatrixMode(GL_PROJECTION);
        glLoadIdentity();
        gluPerspective(30.0, (float)w / (float)h, 0.1, 50.0);
    }
    void calculateFPS() {
        frameCount++;
        currentTime = glutGet(GLUT_ELAPSED_TIME);
        int timeInterval = currentTime - previousTime;
        if (timeInterval > 1000) {
            float fps = frameCount / (timeInterval / 1000.0f);
            cout << "rendering " << ayimutSegs * polarSegs << " quads at fps=" << fps << " (targetFps = 60)" << endl;
            previousTime = currentTime;
            frameCount = 0;
        }
    }
    void display() {
        // update up to 100 random vertices
        for (unsigned i = 0; i < 100 && i < (ayimutSegs / 2); i++) {
            updateRandomVBOVertex();
        }
        glClearColor(0.0f, 0.0f, 0.0f, 0.0f);
        glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);
        glMatrixMode(GL_MODELVIEW);
        glLoadIdentity();
        // set camera
        gluLookAt(3.5, -1.0, 3.5, 0.0, 0.0, 0.0, 0.0, 0.0, 1.0);
        // draw scene
        glRotatef(t, 0.0f, 0.0f, 1.0f);
        // activating VBO
        glBindBuffer(GL_ARRAY_BUFFER, vertBufID);
        int stride = 0;
        glVertexPointer(3, GL_FLOAT, stride, NULL);
        glEnableClientState(GL_VERTEX_ARRAY);
        if (mode == 0) {
            glColor3f(1.0f, 1.0f, 1.0f);
        }
        else {
            glColorPointer(3, GL_FLOAT, stride, NULL);
            glEnableClientState(GL_COLOR_ARRAY);
        }
        glBindBuffer(GL_ELEMENT_ARRAY_BUFFER, indicesBufID);
        glDrawElements(GL_QUADS, vertSize * 4, GL_UNSIGNED_INT, NULL);

        glDisableClientState(GL_VERTEX_ARRAY);
        glDisableClientState(GL_COLOR_ARRAY);
        calculateFPS();
    }
};
//this is a static pointer to a Renderer used in the glut callback functions
static Renderer* renderer;
//glut static callbacks start
static void glutResize(int w, int h)
{
    renderer->resize(w, h);
}
static void glutDisplay()
{
    renderer->display();
    glutSwapBuffers();
    glutReportErrors();
}
static void timer(int v)
{
    float offset = 0.25f;
    renderer->t += offset;
    glutDisplay();
    glutTimerFunc(unsigned(16), timer, ++v);
}
static void glutKeyboard(unsigned char key, int x, int y) {
    bool redraw = false;
    std::string modeStr;
    switch (key) {
    case '1':
        if (renderer->mode == 1) renderer->mode = 0;
        else renderer->mode = 1;
        redraw = true;
        break;
    case '2':
        if (renderer->ayimutSegs < 512) {
            renderer->ayimutSegs *= 4;
            renderer->polarSegs *= 4;
        }
        else {
            renderer->ayimutSegs = 8;
            renderer->polarSegs = 8;
        }
        renderer->recreateVBOs();
        redraw = true;
        break;
    }
    if (redraw) {
        glutDisplay();
    }
}
int main(int argc, char** argv)
{
    glutInit(&argc, argv);
    glutInitDisplayMode(GLUT_DEPTH | GLUT_DOUBLE | GLUT_RGBA);
    glutInitWindowPosition(100, 100);
    glutInitWindowSize(640, 480);
    glutCreateWindow("Press 1 to change color, 2 to increase vertex count");
    GLenum err = glewInit();
    if (GLEW_OK != err) {
        fprintf(stderr, "Glew error: %s\n", glewGetErrorString(err));
    }
    glutDisplayFunc(glutDisplay);
    //glutIdleFunc(glutDisplay);
    glutReshapeFunc(glutResize);
    glutKeyboardFunc(glutKeyboard);

    renderer = new Renderer;
    renderer->init();

    glutTimerFunc(unsigned(20), timer, 0);
    glutMainLoop();
}

저작자표시 동일조건 (새창열림)

'전공 > 컴퓨터 그래픽스' 카테고리의 다른 글

버퍼 오브젝트 (Buffer Objects) (3)  (0) 2023.06.17
버퍼 오브젝트 (Buffer Objects) (2)  (0) 2023.05.29
프레임 버퍼(Frame Buffer Object)  (0) 2023.05.28
텍스처 (3)3D 텍스쳐  (0) 2023.05.28
텍스처 (2)텍스쳐 매핑 기법  (0) 2023.05.20

관련글

댓글

티스토리툴바
